Pneumatic Angle Seat Piston Valve – Flanged PN16

Angle Seat Piston Valve, Flanged PN16 – All Stainless Steel – DN15 – DN150. Visual Device As Standard.

Price range: £395.55 through £1,745.28 exc. VAT

Need Assistance?

For more product information or if you question, please contact us.

Share This Product

Product Details

Italvalvole IVFL Series

Quality On-Off (Shut-Off) Angle Seat Piston Valve, gives reliable long lasting service.

Made with a CF8M Stainless Steel Valve Body,

CF8M is essentially a cast version of 316 stainless steel. 316 valves are shaped by forging. Like the differences between 316 and 316L stainless steel, the key difference between CF8M and 316L is a tradeoff between a slightly reduced corrosion resistance and the advantages of casting.

Flanged PN16 complete with a Pneumatic 304 Stainless Steel Actuator (Servo Control).

Supplied Complete with a Visual Device as standard.

Full Spares Avaliable.

/images/PDF Download Logo.jpg



Specification:

  • Size: DN15 – DN65
  • Stroke: 15.00
  • Seat: PTFE
  • Max D.P (BAR): DN15 DN25 16.00 BAR, DN20 DN32 14 BAR, DN40 10 BAR, DN50 6.5 BAR, DN65 9.5 BAR.
  • Normally Closed:
  • Max Temperature: 200 Degrees Celsius
  • End Connections: PN16 Flanged
  • Servo Size: DN15 – DN20 70mm,  DN25-DN50 80 mm, DN65 125mm.





Related Products

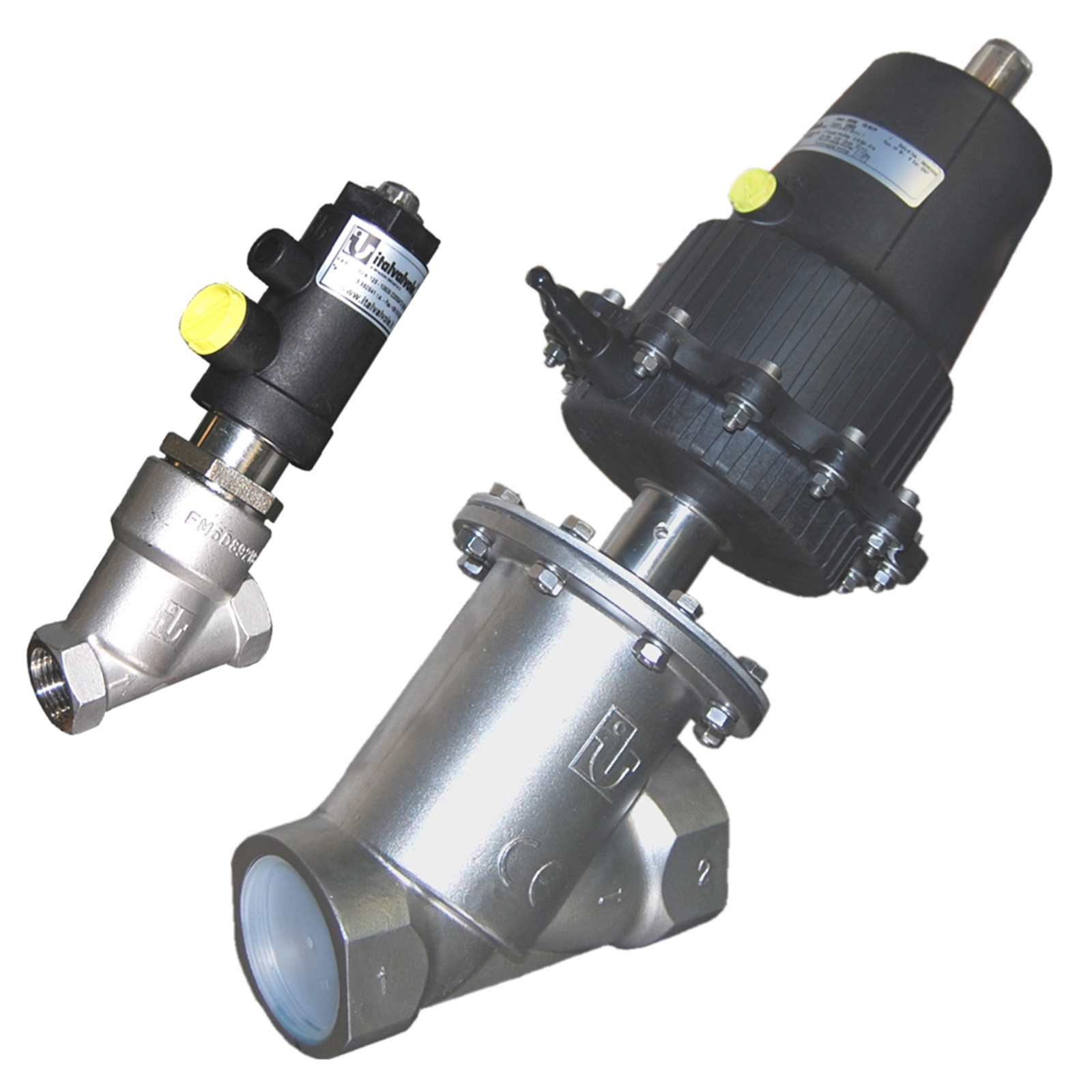

Pneumatic Angle Seat Valve, Polyamide Servo – NC – PTFE – Stainless Stee…

Price range: £157.66 through £463.25 exc. VAT

Select options This product has multiple variants. The options may be chosen on the product page

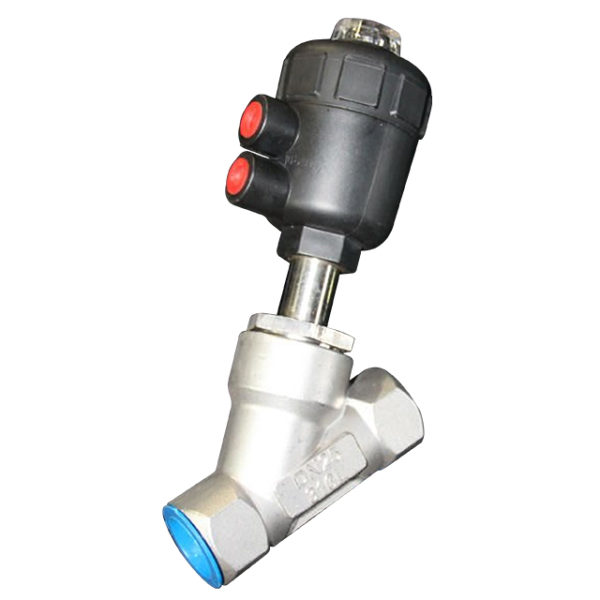

Pneumatic Angle Seat Valve – BSPP – PTFE – PA Actuator

Price range: £104.19 through £330.00 exc. VAT

Select options This product has multiple variants. The options may be chosen on the product page

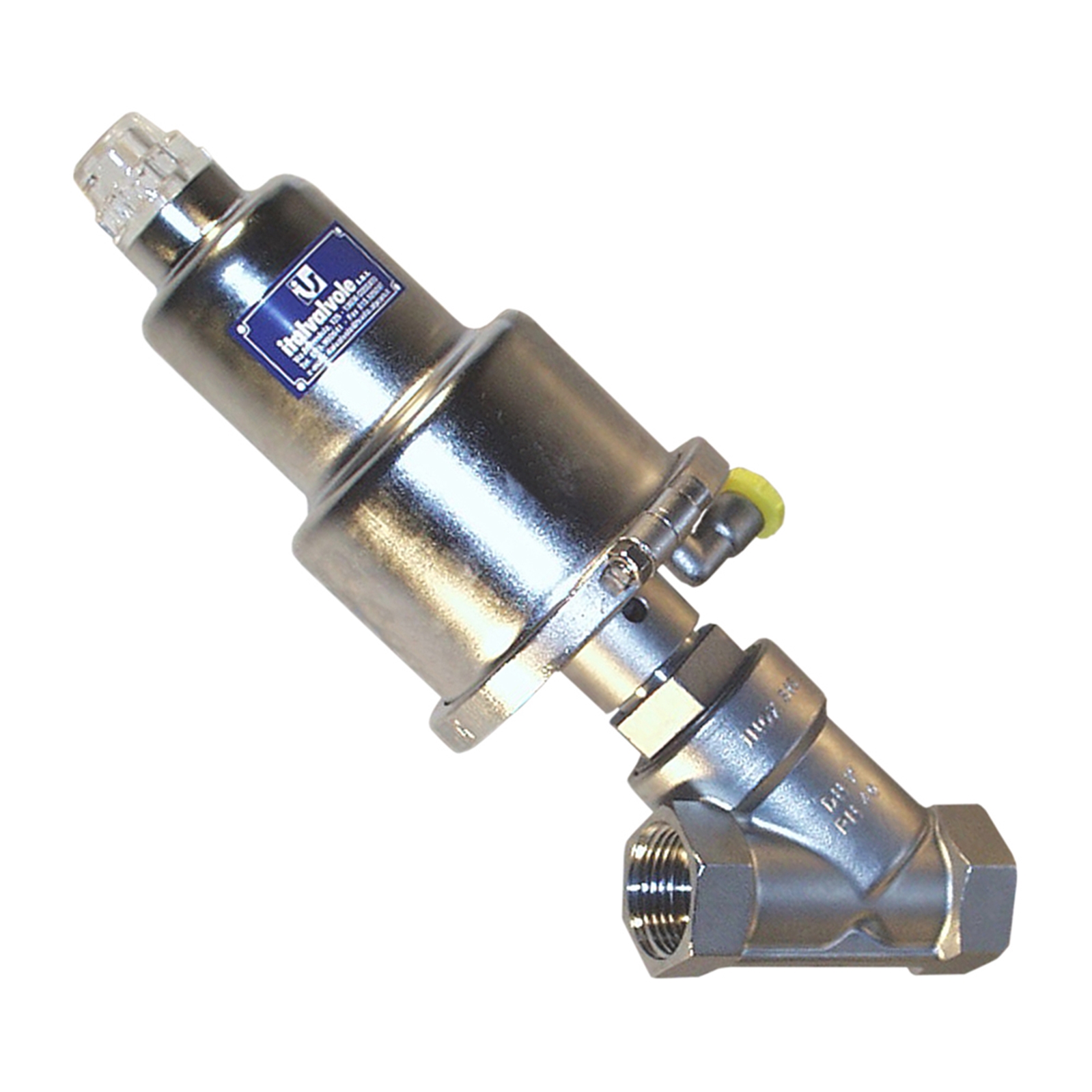

Pneumatic Angle Seat Piston Valve – NC – PTFE – All Stainless Steel…
